Charging RV solar batteries in hot temperatures can pose challenges as they can impact the life and longevity of your battery. It’s important for RV owners to understand how temperature can affect their RV batteries and the steps they can take to charge them effectively in these conditions. With the heat dome heating up much of US we’re getting dangerously close to the upper charging limits of common batteries used in solar systems on RVs.
![arches national park, van, drive-1846759.jpg](https://backcountrysolar.com/wp-content/uploads/2023/07/arches-national-park-van-drive-1846759-edited.jpg)
![arches national park, van, drive-1846759.jpg](https://backcountrysolar.com/wp-content/uploads/2023/07/arches-national-park-van-drive-1846759-edited.jpg)
Battery Types and Lower and Upper Charging Temperature Limits
Battery Type | Lower Charging Limit | Upper Charging Limit |
Flooded (Lead Acid) | 32°F (0°C) | 104°F (40°C) |
Sealed (Lead Acid) | 32°F (0°C) | 104°F (40°C) |
AGM (Lead Acid) | 32°F (0°C) | 104°F (40°C) |
Gel Cell (Lead Acid) | 32°F (0°C) | 104°F (40°C) |
LiFeP04 (Lithium Irion Phosphate) | 32°F (0°C) | 113°F (45°C) |
Effects of High Temperature on RV Batteries
High temperatures can have a significant impact on RV batteries, especially during extended periods of hot weather. Both lithium and lead-acid batteries can experience performance and efficiency degradation in these conditions.
Lithium Type Batteries
For lithium batteries, overheating may cause the battery management system (BMS) to limit the charge and discharge rates or even shut the battery down temporarily to protect it from damage. Additionally, consistently operating at high temperatures can reduce the overall lifespan of these batteries.
Lead-Acid Type Batteries
Lead-acid batteries are also susceptible to the negative effects of high temperatures. Elevated temperatures may result in an increased rate of evaporation, causing the electrolyte levels to drop and affecting the battery’s ability to hold a charge. Moreover, excessive heat can accelerate the aging process and cause lead-acid batteries to lose capacity more rapidly.
RV owners should keep track of their battery’s temperature to ensure that it stays within the recommended operating range. One way to maintain battery temperature is by parking the RV in shaded areas or using suitable insulation material to shield the battery compartment from direct sunlight.
Preventing Damage from Hot Charging
Proper care and precautions when charging RV batteries in hot temperatures can ensure the safety and longevity of your batteries. Heat can cause damage to the batteries and their components, so it is crucial to mitigate this risk by following a few guidelines.
Battery Location
First and foremost, maintaining a stable temperature in the area where the batteries are charged helps prevent damage. Instead of charging the RV batteries in an excessively hot environment, such as an unventilated garage or outdoors under direct sunlight, choosing a well-ventilated and cooler space is advisable. This allows better airflow and helps in dissipating heat generated during the charging process. You could even consider adding fans to your RV compartment to help.
Using A Temp Sensor
Monitoring the charging voltage is another step in safeguarding the batteries from heat-related damage. Overcharging the batteries, or charging the batteries while they are hot, can cause the internal cells to boil and produce excessive heat. Using a charger that allows battery temperature readings can help prevent pushing a high charge when the battery is close or over the temperature limit.
Most solar charge controllers will have the ability to use a temp sensor, and most newer RVs with an internal charger can as well. We highly recommend getting a temp sensor if you frequent hotter areas. But keep in mind that the charger will regulate the charge of the battery if it’s too hot. The temp sensor will slow the charge, or even stop the charge, if the battery is at dangerously high temperatures.
Ventilation
Proper ventilation is another crucial factor to consider when charging RV batteries in hot temperatures. Batteries produce potentially harmful gases during operation, and good ventilation helps in dissipating these gases, reducing the chances of a hazardous build-up. Providing adequate space between the batteries or installing venting fans can help keep the temperatures under control and maintain safety standards.
Types of RV Batteries and Their Heat Tolerance
RV batteries come in different types, with varying heat tolerances. Having an understanding of these different battery types will help you choose the most suitable option for your needs and prolong their lifespan. There are three main types of RV batteries: Lithium Type (generally lithium iron phosphate), AGM (Absorbent Glass Mat) batteries, and gel batteries. Each type has its own unique set of benefits and drawbacks when subjected to high temperatures.
Lithium Batteries are an alternative to traditional lead-acid batteries and have become increasingly popular in recent years due to their light weight, long lifespan, and exceptional heat tolerance. They can perform well in hot temperatures, but extreme heat can still cause damage or shorten their lifespan. Proper care, such as storing them in a climate-controlled area, is essential to maintain their performance.
AGM Batteries are sealed and maintenance-free, with a fiberglass material used to immobilize the electrolyte. This design results in a safer and more durable battery, especially in hot temperatures. The heat resistance of AGM batteries is generally better than that of conventional flooded batteries, but they can be more sensitive to overcharging.
Gel Batteries use a thick, jelly-like electrolyte, which eliminates the need for regular maintenance. Gel batteries are the most heat-tolerant option among the three types of batteries, but they also tend to be more expensive and less forgiving to overcharging.
In addition to these three main categories, RV batteries can be classified as either starter batteries or deep cycle batteries. Starter batteries are designed to provide short bursts of energy to start an engine, while deep cycle batteries are built to provide a sustained flow of power to appliances and electronics.
Types of Batteries and Their Upper Charging Temperatures
There are several types of batteries commonly used in RVs, including lithium and lead-acid batteries. Each type has its own unique charging properties, particularly when it comes to temperature sensitivity.
Lithium Batteries are gaining popularity due to their lightweight, long lifespan, and high energy density. However, they can be sensitive to high temperatures when charging and may require specific temperature-controlled chargers or cooling systems. In general, it is recommended to keep charging temperatures below 45°C (113°F) for lithium batteries to ensure proper charging efficiency and safety.
Lead-Acid Batteries are the oldest type of rechargeable battery and are widely used in RVs. There are two main types of lead-acid batteries applicable to RVs: starter batteries and deep cycle batteries. Starter batteries are typically used to power the engine, while deep cycle batteries are used for powering appliances and other electrical devices within the RV. Both types of lead-acid batteries can tolerate a wider temperature range than lithium batteries. However, at high temperatures, their charging voltage must be adjusted to avoid overcharging. For most lead-acid batteries, the recommended charging voltage should be set lower when warm.

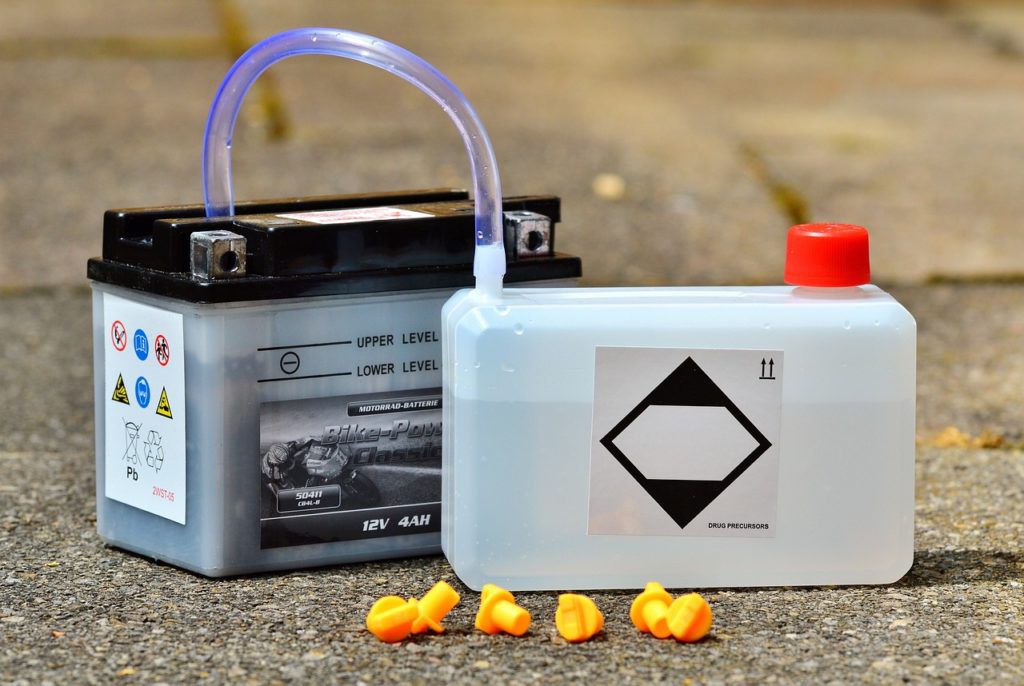

Maintaining Proper Water Levels (Flooded)
![battery, motorcycle battery, battery acid-2490122.jpg](https://backcountrysolar.com/wp-content/uploads/2023/07/battery-motorcycle-battery-battery-acid-2490122-1024x686.jpg)
![battery, motorcycle battery, battery acid-2490122.jpg](https://backcountrysolar.com/wp-content/uploads/2023/07/battery-motorcycle-battery-battery-acid-2490122-1024x686.jpg)
Charging flooded, or open cell lead-acid RV batteries in hot temperatures requires extra attention to maintaining proper water levels. When a battery is charged, heat is generated, causing water to evaporate and lead to a decrease in the electrolyte solution within the battery. This can result in decreased battery performance, or even battery failure. Add in a dry desert atmosphere and you could see accelerated water loss.
To maintain the right water levels, frequently check them, especially during the hotter months or when charging for extended periods. Ensure that the battery top is clean before removing the vent caps to avoid any dirt or debris from falling into the cells. Use a flashlight to inspect the electrolyte levels inside each cell. The electrolyte should cover the battery plates entirely, but avoid overfilling as it can lead to leakage and corrosion. We would recommend that you start doing this monthly, then adjust based on your readings.
When topping off water levels, use only distilled water. Tap water contains impurities and minerals that can negatively affect the electrolyte solution, causing a reduction in battery capacity. Additionally, it’s vital to add water only after charging the battery to prevent the electrolyte from overflowing during the charging process.
Using a Temp Sensor for Battery Health
![Temperature Sensor for Charge Controller to Control Battery Temp](https://backcountrysolar.com/wp-content/uploads/2023/07/ZS-30A-TS-NoBG.jpg)
![Temperature Sensor for Charge Controller to Control Battery Temp](https://backcountrysolar.com/wp-content/uploads/2023/07/ZS-30A-TS-NoBG.jpg)
Using a temp sensor with your battery chargers can significantly enhance battery lifespan and performance. A battery temperature sensor, a feature included with many battery chargers. It helps manage the risk of charging the battery when the internal battery is too hot, or too cold.
Using a battery temperature sensor allows the battery charger to monitor the battery’s heat levels accurately, ensuring the charging process is efficient and safe. With this tool, you can keep a close eye on your battery’s state of charge, preventing any overcharging risks and thereby, enhancing your battery’s longevity and performance. If your solar charger or RV charger has a temp sensor option, we’d recommend using it.
Key Takeaways for Charging RV Solar Batteries in Hot Temps
Charging RV solar batteries in hot temperatures requires careful consideration and proactive measures to ensure the safety and longevity of your batteries. High temperatures can have a significant impact on both lithium and lead-acid batteries, affecting their performance and efficiency during extended periods of hot weather.
To effectively charge your RV batteries in hot conditions, keep the battery’s temperature within the recommended operating range. Parking your RV in shaded areas or using suitable insulation material can help maintain a stable temperature and shield the batteries from direct sunlight.
Monitoring the charging voltage and using proper ventilation are steps to safeguarding the batteries from heat-related damage. Overcharging can lead to internal cell boiling and excessive heat production, potentially causing irreparable harm to the batteries. Ensuring your charging equipment is compatible with the battery type and using temperature-controlled chargers can mitigate these risks effectively.
When considering battery types, lithium batteries stand out for their exceptional heat tolerance, light weight, and long lifespan. However, all battery types, including AGM and gel batteries, have their unique advantages and drawbacks when subjected to high temperatures. Understanding their heat tolerance can help you choose the most suitable option for your specific needs.
Maintaining proper water levels in flooded lead-acid batteries is critical, as heat can accelerate evaporation and reduce battery performance. Regularly checking and adjusting water levels, using distilled water, and adding water after charging are crucial steps to avoid issues in hot weather conditions.
In addition, using a battery temperature sensor with your chargers can significantly enhance battery lifespan and performance, preventing the risk of charging the battery at extreme temperatures.
As you embark on your RV adventures, keep these effective tips in mind to charge your solar batteries safely and efficiently in hot temperatures. Taking proactive measures and following best practices will not only prolong your battery life but also ensure that your journeys remain smooth and trouble-free.
Remember, always refer to the manufacturer’s instructions for the specific charging requirements of your battery to maximize its potential and enjoy worry-free travels under the sun.
Happy RVing!
