Introduction to Charge Controllers for RV Solar Systems
Charge controllers play a crucial role in the efficiency and safety of solar power systems. As an essential component in nearly all systems that charge batteries, charge controllers ensure that batteries receive the proper voltage and current to prevent overcharging and maintain their long-term functionality. By serving as a regulator between the solar panels and the battery storage system, these devices keep batteries adequately fed while preventing any potential damage from excessive voltage.
![Victron 150|35 MPPT Solar Charge Controller](https://backcountrysolar.com/wp-content/uploads/2023/07/1622032437_upload_products_266_266-SmartSolar20MPPT20150-3520top1.png)
![Victron 150|35 MPPT Solar Charge Controller](https://backcountrysolar.com/wp-content/uploads/2023/07/1622032437_upload_products_266_266-SmartSolar20MPPT20150-3520top1.png)
There are two primary types of charge controllers: pulse-width modulation (PWM) and maximum power point tracking (MPPT). PWM controllers are typically more affordable and well-suited for smaller systems, while MPPT controllers are often found in larger, more complex systems due to their ability to boost efficiency and optimize power output. Regardless of the type, a properly installed charge controller ensures the most efficient performance of a solar power system, increasing its overall lifespan and reliability.
With the integration of a solar charge controller, solar+storage systems can operate both on and off the power grid, allowing users to rely on solar energy as their primary power source or as a backup during outages. This flexibility, combined with the assurance of battery protection, makes charge controllers a vital component in harnessing the full potential of solar energy.
Understanding Solar Charge Controllers
Functions of Solar Charge Controllers
A solar charge controller is an essential component of a solar power system, as it manages the power going in and out of the battery bank, regulating voltage and current to prevent overcharging, which can damage your batteries. It does this by controlling the flow of energy from your solar panels and stopping the reverse flow of power that can drain and damage the battery bank 1.
Charge controllers also convert the raw power delivered from a photovoltaic (PV) solar panel into a usable charge for the battery, acting as a converter for the mismatched voltages of the two components 2.
Types of Solar Charge Controllers: PWM and MPPT
There are two main types of solar charge controllers: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking).
![Zamp Solar PWM 30 Amp Solar Charge Controller](https://backcountrysolar.com/wp-content/uploads/2023/07/ZS-30A-frontNoBG.jpg)
![Zamp Solar PWM 30 Amp Solar Charge Controller](https://backcountrysolar.com/wp-content/uploads/2023/07/ZS-30A-frontNoBG.jpg)

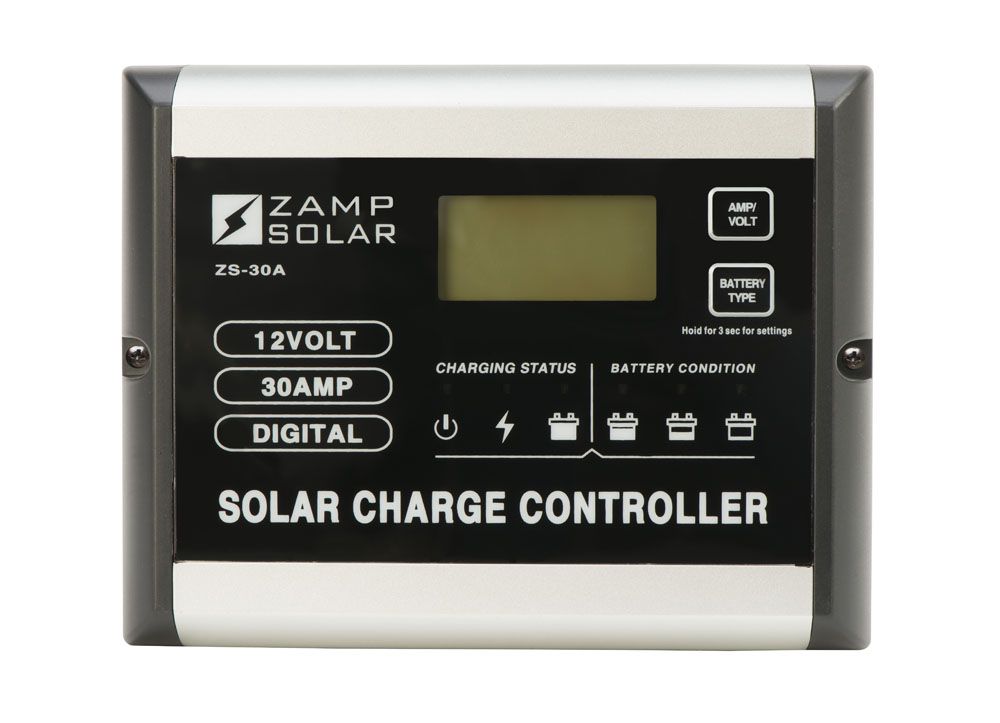

- PWM Charge Controllers: These controllers are more straightforward and inexpensive, but they can be less efficient, especially in low-light conditions or high temperatures. PWM charge controllers work by maintaining a constant voltage at the battery, adjusting the pulse width to control the charging current 3.
- MPPT Charge Controllers: More advanced and efficient, MPPT charge controllers can maximize the energy transfer from the solar panels to the battery bank by actively tracking the maximum power point of the solar array and adjusting the voltage and current accordingly 4. This results in increased charging efficiency, especially in low-light conditions or variable temperatures.
Check out our blog where we answer a question about: Is MPPT is More Efficient?
Importance of Charge Controllers in Solar Systems
Solar charge controllers are critical to the proper functioning and longevity of a solar power system. They protect your battery storage components by ensuring they don’t get overcharged, hence prolonging the lifespan of your system, while also maintaining optimal performance 5.
Moreover, a solar charge controller benefits a solar+storage system, allowing customers to use solar off-grid, either full-time or as a backup during power outages 6. By integrating a charge controller in your solar system, you are investing in the safety, efficiency, and reliability of your solar power installation.
Footnotes
Key Components and Features
Temperature Sensors and Compensation

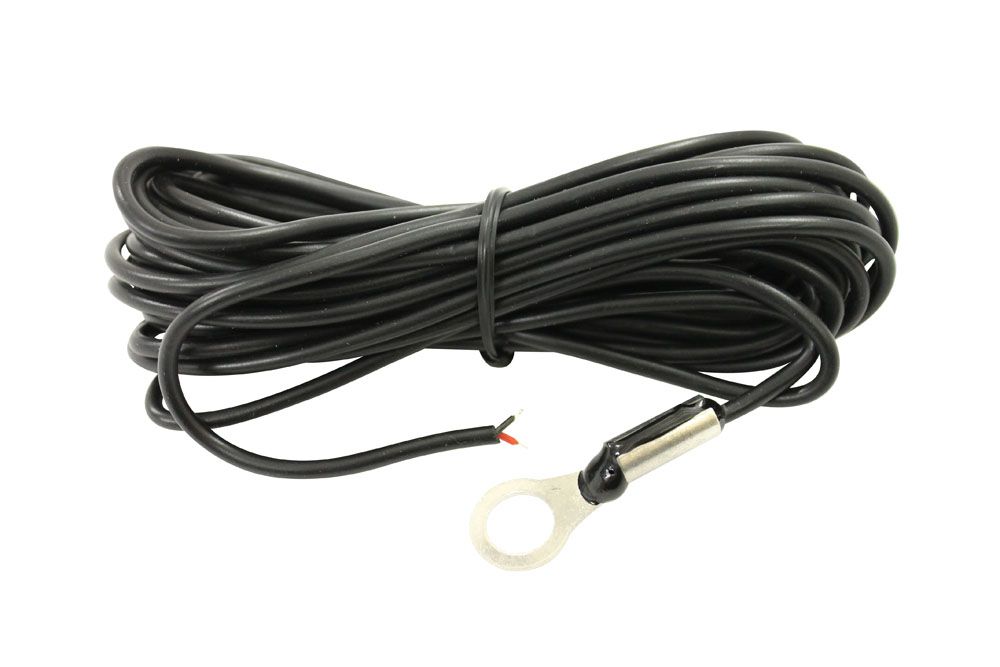

Temperature sensors monitor the temperature of the battery and adjust the charging parameters accordingly. With this feature, the controller is able to prevent battery damage due to overheating and offer appropriate compensation for the varying energy output resulting from changes in the temperature. Some charge controllers use external temperature sensors for increased accuracy.
![Temperature Sensor for Charge Controller to Control Battery Temp](https://backcountrysolar.com/wp-content/uploads/2023/07/ZS-30A-TS-NoBG.jpg)
![Temperature Sensor for Charge Controller to Control Battery Temp](https://backcountrysolar.com/wp-content/uploads/2023/07/ZS-30A-TS-NoBG.jpg)
Low Voltage Disconnects and Overload Protection
Low voltage disconnects (LVD) are an essential feature in solar charge controllers, providing protection against deep discharge of the battery. When the battery voltage falls below a specified threshold, the LVD automatically disconnects the load to prevent further depletion of the battery. Overload protection is offered through the use of circuit breakers and fuses, safeguarding the solar power system from excessive currents and potential damage.
Display and Remote Monitoring

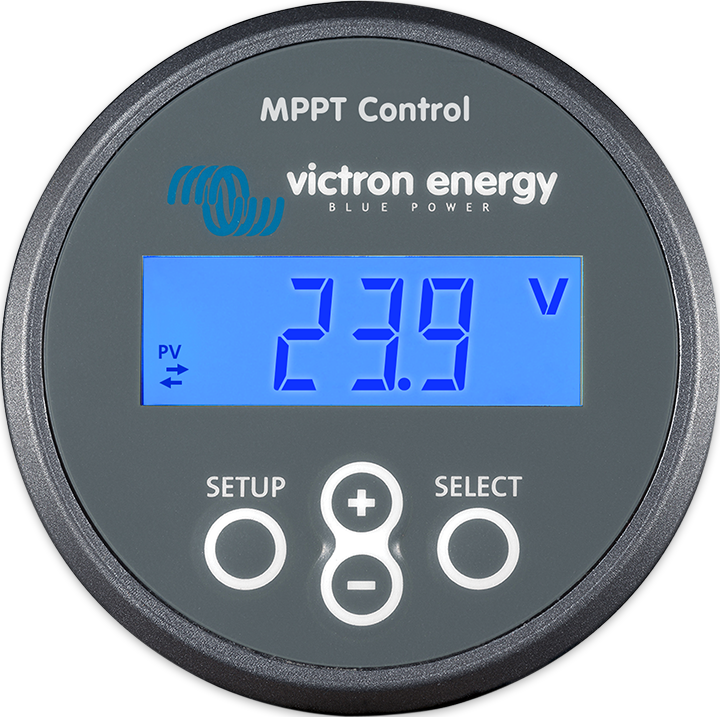

Many solar charge controllers offer displays and metering systems that provide valuable information about the performance and status of the solar power system. An LCD display may show critical system data such as battery voltage, amperage, and charging status. In addition, some controllers offer remote monitoring capabilities, allowing users to access real-time system data and make necessary adjustments from a distance. This feature can be particularly beneficial for large-scale systems or off-grid installations where on-site management can be challenging.
![Victron Energy Remote Display](https://backcountrysolar.com/wp-content/uploads/2023/07/327_220_201807060941481.png)
![Victron Energy Remote Display](https://backcountrysolar.com/wp-content/uploads/2023/07/327_220_201807060941481.png)
Choosing the Right Charge Controller
Assessing Your Solar Power System Needs
Before selecting a solar charge controller, assess your solar power system requirements. This includes determining whether your system is off-grid or grid-tied and the type of solar panels you have (monocrystalline, polycrystalline, or thin-film). It’s also important to consider the voltage of your panels (12V, 24V, or 48V) and the scale of your system 1.
Size, Amperage, and Voltage Capacity
Solar charge controllers are rated and sized by the solar module array current and system voltage. Common sizes include 12, 24, and 48-volt controllers 2. The voltage capacity of a controller should be compatible with the battery bank voltage. Additionally, consider the maximum input voltage of the controller to ensure it can accommodate your solar array.
When estimating the size of a solar charge controller, calculate the total solar panel array current in amperes. Include a safety factor of about 25% to account for variations in factors such as temperature and natural fluctuations in operational parameters 3. Make sure the charge controller’s amperage rating can handle your calculated current.
Comparing PWM and MPPT Performance and Costs
There are two primary types of solar charge controllers: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT) 4. Each comes with its own set of advantages and trade-offs.
PWM Charge Controllers are generally more affordable and simpler in design. They ensure that the battery is charged at a consistent voltage, which can help extend battery life. However, they’re less efficient than MPPT controllers, especially in cold weather or when the solar panel voltage is significantly higher than the battery voltage.
MPPT Charge Controllers provide better efficiency by continuously adjusting the power input from the solar panels to optimize charging. They can also convert excess voltage into amperage, thereby increasing system efficiency and maximizing the output of your solar panels. MPPT controllers usually have a temperature sensor, which helps improve charging performance under varying conditions. However, they are typically more expensive than their PWM counterparts.
Evaluate the performance and costs associated with PWM and MPPT charge controllers to determine which one is best suited to your solar power system. Factors to consider include system size, budget, and efficiency requirements.
Footnotes
- https://blog.ecoflow.com/us/solar-charge-controller-basics/ ↩
- https://www.greentechrenewables.com/article/choosing-correct-charge-controller ↩
- https://www.renogy.com/blog/solar-charge-controller-sizing-and-how-to-choose-one-/ ↩
- https://blog.ecoflow.com/us/solar-charge-controller-types/ ↩
Installation and Maintenance
![image of the sun shining on solar panels](https://backcountrysolar.com/wp-content/uploads/2023/07/solar-panel-sun-6799111-1024x732.png)
![image of the sun shining on solar panels](https://backcountrysolar.com/wp-content/uploads/2023/07/solar-panel-sun-6799111-1024x732.png)
System Design and Placement
When installing a solar charge controller, it is important to consider factors such as battery voltage, amperage ratings, and nominal voltage for system design. Ensure the charge controller selected is compatible with the solar battery and panels in terms of voltage and current capacity. Calculate the required controller size by dividing the total solar array current by the battery bank’s nominal voltage. Choose a charge controller that can efficiently handle the generated power and consider future expansion plans when selecting the appropriate model.
Placement plays a significant role in the performance of the charge controller. Place it in a well-ventilated, dust-free area to avoid overheating and to facilitate temperature compensation. Keep the solar charge controller close to the battery bank to minimize voltage drop and energy losses.
Climate Considerations
The type of solar charge controller depends on the climate and temperature conditions in the installation area. For instance, charge controllers with temperature compensation features can help regulate battery charging in extreme climates. In colder environments, MPPT (Maximum Power Point Tracking) charge controllers are generally preferred over PWM (Pulse Width Modulation) controllers since they can capture more energy and maintain the battery’s ideal temperature.
Safety Precautions
Installing a solar charge controller requires following specific safety precautions to prevent accidents and ensure the system operates efficiently. Always connect the battery to the charge controller first, before connecting the solar panels. This prevents voltage spikes, which can potentially damage the controller. Similarly, when uninstalling, disconnect the solar panels first, followed by the battery. Check the polarities of all connections to avoid short circuits or reversed connections. Make sure to observe proper electrical safety precautions and wear protective gear when handling the wiring.
Manufacturer Guidelines
Adhering to the manufacturer’s guidelines for installation, maintenance, and operation is crucial to maintaining the solar charge controller’s efficiency and longevity. Consult the manufacturer’s manual to understand the specific requirements of your chosen model. Some manufacturers like Victron provide detailed installation and operation manuals that guide users through the setup process and outline maintenance procedures.
Investing in a high-quality solar charge controller with a good reputation and following the manufacturer’s guidelines can help maximize the system’s performance. Prioritize your budget and invest in a solar charge controller that best suits your climate, safety precautions, and system design requirements.
Advanced and Emerging Technologies
State-of-the-Art Solar Charge Controllers
State-of-the-art solar charge controllers have come a long way in terms of efficiency and technology. Nowadays, many controllers feature bluetooth connectivity, allowing users to monitor and control their solar systems remotely. Moreover, advanced algorithms are being employed to improve energy transfer efficiency and reduce charging time.
Lithium Batteries and Compatibility
The compatibility of solar charge controllers with lithium batteries is becoming increasingly important. Lithium batteries offer significant advantages over traditional lead-acid batteries, including longer battery life and better performance. As a result, there’s a growing demand for controllers that can effectively work with these types of batteries, ensuring a steady flow of energy and specific voltage requirements.
Read more about batteries, how to care for them, how to wire them, and more in our Battery Basics Series.

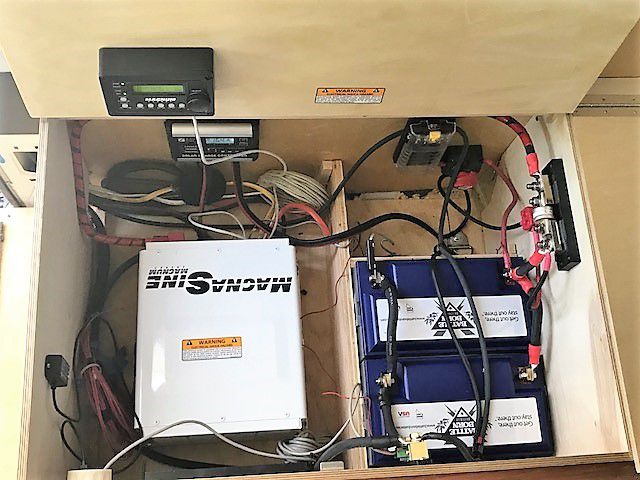

![electrical devices in a van](https://backcountrysolar.com/wp-content/uploads/2022/01/MoabVan2-Small.jpg)
![electrical devices in a van](https://backcountrysolar.com/wp-content/uploads/2022/01/MoabVan2-Small.jpg)
Diode, and Semiconductor Innovations
Solar charge controller technologies are continuously advancing, with innovations in diodes, and semiconductors. These components play a crucial role in controlling the flow of energy between the solar panels and batteries. For example, diodes can efficiently direct the flow of electricity, while advanced semiconductors can greatly improve the overall performance and durability of the controllers.
Keeping up with these emerging technologies is essential for the continued growth and efficiency of solar energy systems. Companies like Renogy have been at the forefront of these developments, ensuring that solar charge controller technology remains cutting-edge and reliable for consumers.
Frequently Asked Questions
What do solar charge controllers do?
Solar charge controllers are components in solar power systems that regulate the charging process of solar batteries. They prevent batteries from overcharging, which can lead to damage and reduce their lifespan. Charge controllers ensure that the power generated by solar panels is safely and efficiently transferred to the batteries for storage and later use.
How do charge controllers work?
Charge controllers manage the flow of electricity from solar panels to batteries by constantly monitoring the battery’s voltage and adjusting the current accordingly. They ensure that your solar battery receives the optimal amount and rate of charge, thereby maximizing its efficiency and longevity. As your battery reaches full charge, the controller gradually reduces the charging current to avoid overcharging. They also provide vital information on system performance and battery health.
What are common settings for controllers?
Many solar charge controllers come with adjustable settings that enable you to customize the charging process according to your specific system requirements and preferences. Common settings include load control, temperature compensation, absorption voltage, float voltage, and low voltage disconnect. Customizing these settings helps ensure that your solar system operates efficiently and that your battery maintains an optimal state of charge.
How do MPPT and PWM differ?
There are two primary types of solar charge controllers: Maximum Power Point Tracking (MPPT) and Pulse Width Modulation (PWM). MPPT controllers are more advanced and efficient, as they capture and convert the maximum power available from solar panels. This allows them to charge the battery at a higher rate, especially in low light or high temperature conditions. PWM controllers, on the other hand, are simpler and less expensive. They work by switching the charging voltage on and off rapidly, maintaining a consistent charging rate for the battery.
Why are controllers needed in solar systems?
Solar charge controllers play a vital role in maintaining the health and efficiency of your solar system. Without one, your battery could become overcharged and damaged, leading to decreased performance and a shorter lifespan. Controllers also safeguard your system from short circuits, reverse polarity, and other potential electrical hazards. They serve as the central management system for the charging process, ensuring that your solar investment remains safe and operates at peak performance.
How to properly use a controller?
Using a solar charge controller properly involves selecting the right one for your system, installing it correctly, and adjusting its settings as needed. First, determine the appropriate charge controller type (MPPT or PWM) and size based on your solar panel’s voltage and current specifications. Next, follow the manufacturer’s instructions for installation, making sure the controller is securely mounted and properly connected to both the solar panels and battery bank. Finally, adjust the controller’s settings, if necessary, to optimize charging performance and maintain a healthy battery.
