How to Use a Battery Hydrometer Tester: A Quick Guide

A battery hydrometer tester is a must-have tool for maintaining healthy lead-acid batteries in vehicles and machinery. It measures the specific gravity of the electrolyte solution, allowing users to assess the battery’s charge and detect issues. Regular use of this tool prevents battery failure and ensures optimal performance.

Safety should be the top priority when working with batteries and using a battery hydrometer tester. Before beginning, ensure that the battery surface is clean and free of debris to prevent any foreign material from contaminating the electrolyte solution. Also, it is crucial to wear proper protective gear such as gloves and goggles to protect oneself from corrosive materials and potential hazards associated with handling batteries. By adhering to these precautions, one can accurately and safely assess the condition of a lead-acid battery using a battery hydrometer tester.

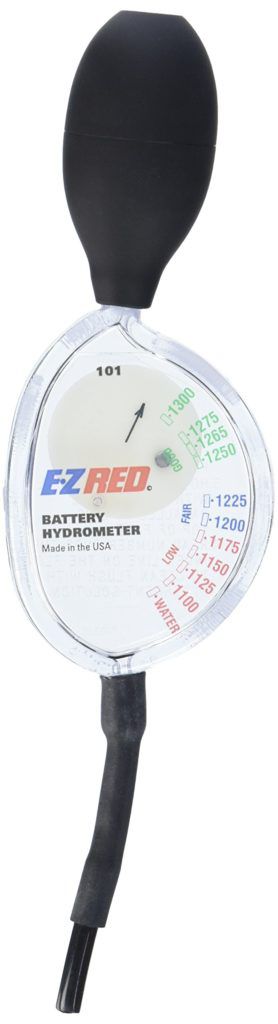

Lead Acid Battery Hydrometer

Required Tools and Safety Gear

Battery Hydrometer

Battery hydrometers are available in different types such as floating ball, needle, and digital. They typically consist of a cylindrical tube with a suction bulb and a built-in scale for measuring specific gravity.

To use a battery hydrometer, follow these steps:

  1. Carefully remove the vent cap from the battery to access the electrolyte.
  2. Gently squeeze the hydrometer’s suction bulb and insert the tube into the electrolyte.
  3. Slowly release the bulb to allow the electrolyte to fill the tube.
  4. Take note of the specific gravity reading on the hydrometer’s scale.
  5. Repeat the process for all cells in the battery.

But First, Be Safe, Acid Is No Joke – Safety Equipment

Working with batteries can be hazardous due to the presence of corrosive electrolytes, as well as the risk of electric shock. Therefore, it’s crucial to wear appropriate safety gear when using a battery hydrometer. Some of the necessary safety equipment includes:

  • Safety goggles: Protect your eyes from potential splashes of electrolyte by wearing safety goggles.
  • Gloves: Wear rubber gloves to guard against contact with the corrosive electrolyte and guard against electric shock.
  • Rubber apron: A rubber apron protects your clothing and skin from accidental spills or splashes of the electrolyte.
  • Closed-toe shoes: Always wear closed-toe shoes when working with batteries to avoid injury from accidental spills or dropped tools.

Preparation and Safety Precautions

Clean the Battery

First, make sure the lead-acid battery is clean. Use a soft, damp cloth to wipe away any dirt or residue on the battery. If there is any corrosion around the terminals, use a solution of water and baking soda to neutralize it. Rinse the battery with water to remove any leftover cleaning solution and allow it to dry completely before proceeding with the test.

Ensure Proper Ventilation

Working with a lead-acid battery involves handling hazardous materials like sulfuric acid, so it is crucial to ensure proper ventilation in your workspace to avoid inhaling any fumes. Conduct the test outdoors or in an open, well-ventilated area.

Charge The Battery

You’ll also want to make sure that you’re working with a good battery. If your battery is discharged, try to give it a slow charge to full. If the battery doesn’t charge up you’ve found the issue and likely need to replace the battery.

Besides these safety precautions, it is essential to have a container of water, or access to water nearby to rinse any body part that might come into contact with the battery acid. Use distilled water to refill the battery’s electrolyte if needed, as it helps prevent any adverse reactions or performance issues. And finally, ensure that you follow the guidelines provided by the battery’s brand during the testing process.

Testing Procedure

Checking the Electrolyte Level

Before using a battery hydrometer tester, check the electrolyte level in each battery cell. Begin by removing the cell caps and examining the amount of electrolyte solution present. The solution should adequately cover the lead plates, but avoid overfilling as it may cause the electrolyte to overflow during testing.

If the level of electrolyte is lower than the top of the cell you should fill it with distilled water and let it go through a discharge and charge cycle. The water needs to mix well to get an accurate reading. Simply shaking or mixing the fluids manually won’t do the trick – and we don’t recommend doing this.

Taking Specific Gravity Readings

To determine the state of charge of a battery, take specific gravity readings with the hydrometer. Carefully insert the hydrometer into the first cell and draw in a sample of electrolyte. Avoid touching the sides of the cell or disturbing the sediment at the bottom.

Observe the hydrometer’s float in the sample, noting the specific gravity reading on the calibrated scale. Specific gravity typically ranges between 1.100 and 1.300, with a fully charged battery having a reading closer to 1.260. The exact values may vary based on the battery type and manufacturer’s recommendations.

It is important to consider the electrolyte temperature when interpreting specific gravity readings. For every 10 degrees Fahrenheit above or below 80 degrees, add or subtract 0.004 from the reading.

After acquiring a reading, gently return the electrolyte sample to the cell and move on to the next one.

Recording Cell Numbers

Lastly, it’s essential to record the specific gravity readings for each cell. This way, any inconsistencies among the cells can be identified. A significant variance in specific gravity readings among cells may indicate an imbalance that requires further investigation.

Keep track of the cell number and corresponding specific gravity reading in a table, as shown below:

Cell NumberSpecific Gravity

Doing so will be helpful for future reference and monitoring the battery’s overall health.

Interpreting Results and Maintenance

Analyzing Specific Gravity and Voltage Readings

Interpreting the results of a battery hydrometer tester involves analyzing the specific gravity readings and voltage readings of a battery. Specific gravity readings are a useful indicator of a battery’s state of charge, while voltage readings provide information on the battery’s overall health.

When testing a battery, take note of the specific gravity readings across all cells. A fully charged battery will typically have a specific gravity of 1.265 to 1.275. A reading below 1.200 indicates a battery with a low state of charge. Voltage readings should also be consistent across all cells, with a fully charged battery having a voltage of about 12.6 to 12.8 volts.

Identifying Recoverable and Unrecoverable Batteries

Battery testing helps identify recoverable and unrecoverable batteries. A recoverable battery can be recharged and returned to service, while an unrecoverable battery has suffered damage, such as sulfation or warped lead plates, and cannot be restored to proper function.

Sulfation occurs when lead sulfate crystals form on the battery’s lead plates, impeding the battery’s ability to accept a charge. A battery with minor sulfation may be recoverable through a proper recharge process. However, if the specific gravity readings and voltage readings are consistently low across all cells, the battery may be heavily sulfated and unrecoverable.

Accurate results are essential in battery testing to determine the appropriate maintenance actions. Always follow the manufacturer’s guidelines for using a battery hydrometer tester and consult a professional if uncertain about the test results or the battery’s condition. Regular battery testing can help extend the life and performance of batteries by identifying issues early and allowing for timely maintenance or replacement as needed.

Charging and Correcting Electrolyte Levels

Charging the Battery

To maintain the health of lead-acid batteries, it is essential to keep them fully charged. Charging a battery helps maintain the balance between the water and electrolyte solution inside. When the battery is discharged, the specific gravity of the electrolyte drops. To bring a lead-acid battery back to its optimal state of charge, connect it to a compatible battery charger and follow the manufacturer’s instructions for charging.

During the charging process, monitor the battery’s temperature and be cautious of any signs that may indicate a problem, such as swelling or excessive heat. If you encounter any issues, stop the charging process immediately and consult a professional.

Adding or Replacing Electrolyte

If the specific gravity reading indicates that the electrolyte levels are unsatisfactory, distilled water or sulfuric acid may be required to correct them. To adjust the electrolyte solution:

  1. Distilled water: If the electrolyte level is below the recommended level, carefully add distilled water until the desired level is reached. Ensure not to overfill as this may cause issues during operation.
  2. Sulfuric acid: If the electrolyte’s specific gravity is too low, even after charging, add a small amount of sulfuric acid as per the manufacturer’s instructions. Consult a professional before adding sulfates, as the process can be hazardous.

Remember to account for temperature correction when taking hydrometer readings to ensure accurate results.

By following these steps for charging the battery and correcting electrolyte levels, you can maintain the optimal performance of lead-acid batteries and prolong their life.

Additional Tips for Battery Maintenance and Care

Regular Check-ups

Performing regular check-ups on your lead-acid batteries can significantly extend their life and ensure optimal performance. Here are some tips to follow during battery maintenance:

  • Visual Inspection: Examine the battery for any visible signs of damage or leakage. Check terminals for corrosion and clean them with a wire brush if necessary.
  • Cleanliness: Keep the battery surface and the surrounding area free of dust and dirt. Accumulated debris can cause short-circuits and reduce the battery’s performance.
  • Electrolyte Level: Battery hydrometer testers are essential for checking the electrolyte levels in lead-acid batteries. It is crucial to maintain the correct level to prevent damage to the battery plates.
  • Charge: Regularly test the battery charge using battery testing tools, such as multimeters or battery analyzers. This helps ensure that the battery is operating at its highest efficiency.

Storing Batteries Properly

Proper storage of batteries is crucial for their longevity and performance. Keep the following guidelines in mind when storing lead-acid batteries:

  • Temperature: Store batteries in a cool and dry place, avoiding exposure to high temperatures and direct sunlight. High heat can damage the battery over time and reduce its life.
  • Moisture: Avoid exposing batteries to water or excessive humidity as it can cause internal damage and promote corrosion.
  • Position: Store batteries in an upright position to prevent electrolyte leakage. Also, make sure the battery is placed on a stable surface to eliminate the risk of it falling and being damaged.
  • Disconnection: Disconnect batteries from any connected devices, which can help prevent any unintended power discharge and ensure safety while in storage.

Frequently Asked Questions

What is the proper method for using a hydrometer tester?

To use a battery hydrometer tester, first, ensure that the battery is cool and disconnect it from any chargers. Remove the vent caps, and insert the hydrometer into the first cell. Squeeze the rubber bulb to draw up the electrolyte. Release the bulb and record the specific gravity reading from the scale. Repeat this process for all cells, ensuring to clean the hydrometer in between each cell.

What is the ideal hydrometer reading for a fully charged battery?

The ideal hydrometer reading for a fully charged lead-acid battery is approximately 1.265 specific gravity. This number can vary slightly depending on battery type and environmental conditions, but it’s a good guideline for determining the charging state of most batteries.

How do digital battery hydrometers differ from traditional ones?

Digital battery hydrometers measure the specific gravity of battery electrolytes electronically, providing a more accurate and easier-to-read result than traditional hydrometers. They also tend to be more durable and less susceptible to errors due to temperature fluctuations, making them an excellent choice for those who require precise readings.
